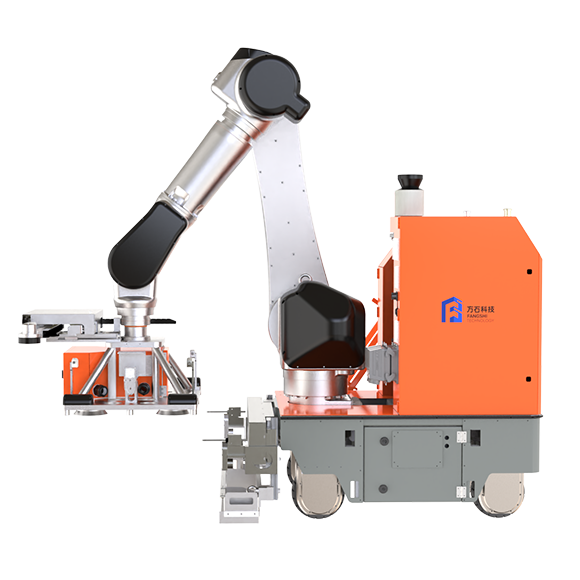

Tile Laying Robot

A construction robot used for tile laying

Advantages of Products：
The robot features Fangshi Technology's independently developed ultra-lightweight, large-arm extension, high-load mechanical arm, omnidirectional mobile chassis, dry mortar mixing device, and cement slurry mixing device. Additionally, it combines robotic arm motion control algorithms, chassis motion control algorithms, visual servo algorithms, and SLAM navigation algorithms to achieve autonomous movement and high-precision construction. The entire machine, along with its accompanying equipment, is compact, highly maneuverable, easy to operate, provides a visually pleasing result in floor tiling, and has a low rate of tile detachment.

High Efficiency：The construction efficiency for large-scale layings can reach up to 120 square meters per day and can replace the work of 4 to 6 persons’ workload.

High Precision：The error in brick joint width is within ±0.5mm, and the height difference between two bricks is controlled within ±0.5mm.

High Yield：It can save the labor cost by more than 60% and save the labor cost within 1 year.

Weight	870 kg	Laying Method	Thick-bed installation with cement mortar as the base	Movement Speed	0~0.7 m/s
Applicable Brick Size Specifications	≤800 mm*800 mm	Control Mode	Remote control or autonomous navigation	Continuous Working Time	10 h
Applicable Brick	Ceramic tiles and smooth-surfaced stone tiles	Work Pattern	Semi-automatic (with manual assistance)	Overall Size	9758101750 mm
Tile Joint Precision	2 mm ± 0.5(adjustable)	Work Efficiency	≤120 ㎡/d≤120 ㎡/d	Height Difference between Two Tiles	±0.5 mm (may require manual adjustment in certain situations)

*The relevant data comes from the application test of Fangshi Technology engineering
