Four-wheel Concrete Laser Screed Robot_Concrete Floor Finishing

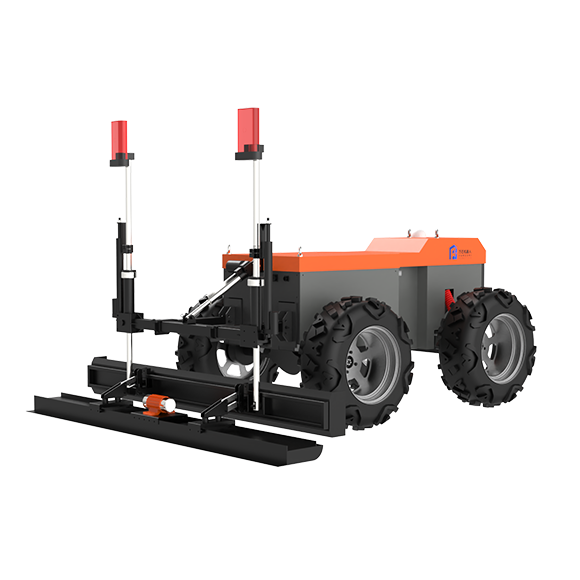

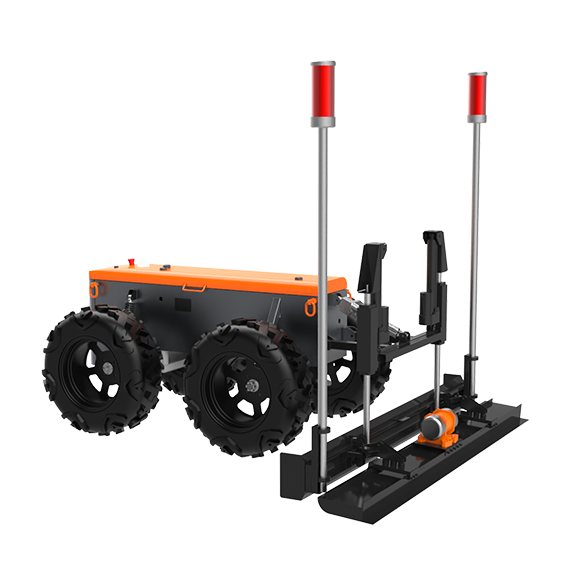

Four-wheel Concrete Laser Screed Robot

A construction robot used for the structural construction of building ground

Advantages of Products：
The Robot is based on the intelligent laser leveling algorithm and the wire-controlled chassis technology to realize unmanned autonomous movement and high-precision construction. In addition, it is based on the battery-driven platform independently researched and developed by Fangshi Technology to realizes zero carbon emission during the leveling construction. The Robot is characterized by small size, flexible maneuverability, easy operations, good leveling effect of construction ground and uniform ground compacting effect.

High Efficiency：The construction efficiency of 400~600 square meters per hour can replace 3~5 persons’ workload.

High Precision：The laser detection precision can be reduced to 2 millimeters and the measurement height different can be controlled to be smaller than 5 millimeters.

High Yield：It can save the labor cost by more than 60% and can recover its cost by completing the construction area of 80,000~100,000 square meters.

Weight	370 kg	Drive Mode	Motor-driven	Work Speed	0~0.4 m/s
Leveling Width	2 m	Control Mode	Remote Control	Continuous Working Time	6 h
Overall Size	2400 * 2000 *1500 mm	Control Range	200 m	Rated Power	1.7 kw
Leveling	Electronic gradienter + gyroscope	Work Efficiency	400~600 ㎡/h*

*The relevant data comes from the application test of Fangshi Technology engineering
